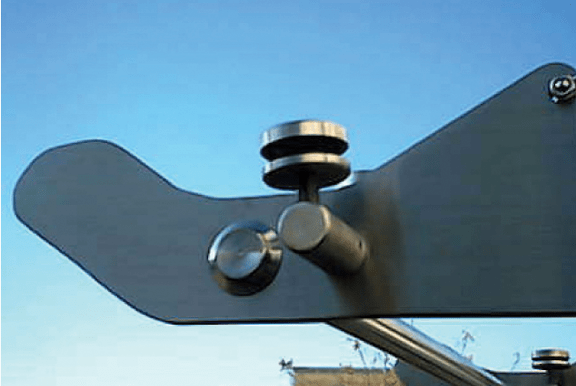

Hanger & Glass Holder
A 15mm wrought iron stainless steel sheet console, chrome steel tensioner, and glass holder.
Flat Bar Bracket Canopy
A 12mm sheet metal bracket, plasma-cut and statically painted, is suspended in place with the glass positioned underneath.

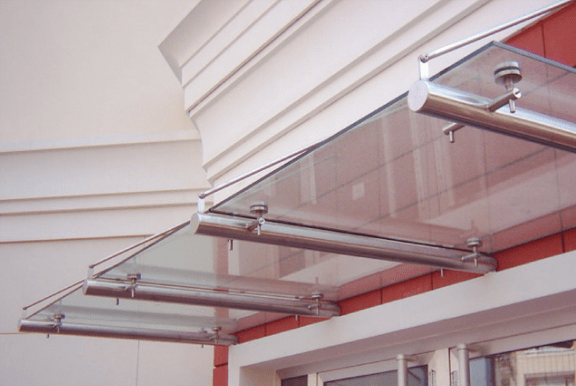

Tube Support Canopy
A Ø 76 stainless steel pipe with glass holders and tensioning components is pre-assembled in the workshop and placed onto the anchored glass system.
Circular Glass Canopy
A 100/10 stainless steel flat bar with glass holders and tensioning components is pre-assembled in the workshop and placed onto the anchored glass system.

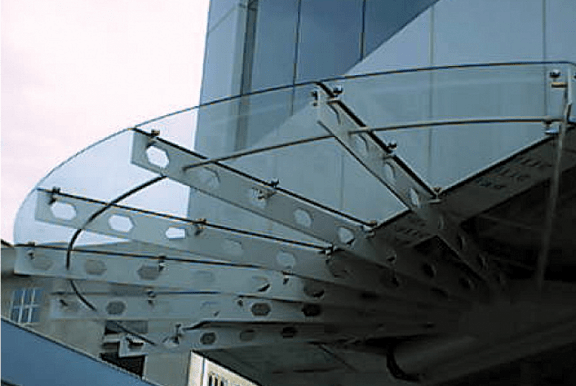

Plaza Entrance Canopy
A 10mm thick steel sheet, plasma-cut, statically painted, and mounted in place, with 12mm tempered glass placed on top.

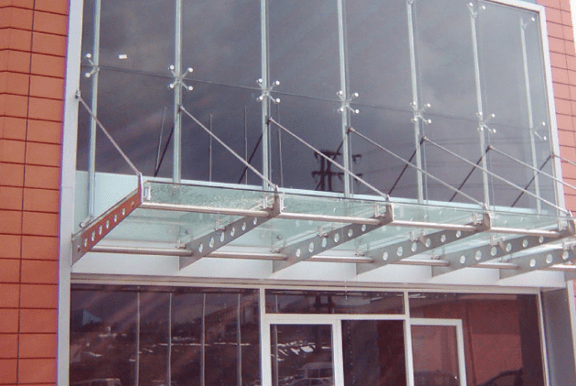

Workplace Entrance Canopy
A 12mm wrought iron stainless steel sheet console, pipe connections, chrome steel tensioner, and tempered glass are used in the construction.

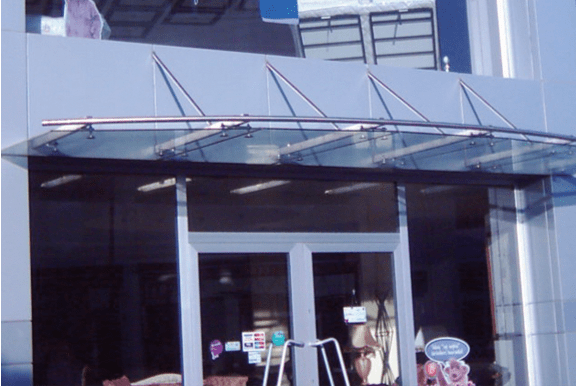

Store Entrance Canopy
Made with a 60/120 box profile bracket, pipe connections, chrome steel tensioner, and tempered glass.
Store Entrance Canopy
Made with a Ø 76 pipe support, 40/90 box profile bracket, chrome steel tensioner, and tempered glass.

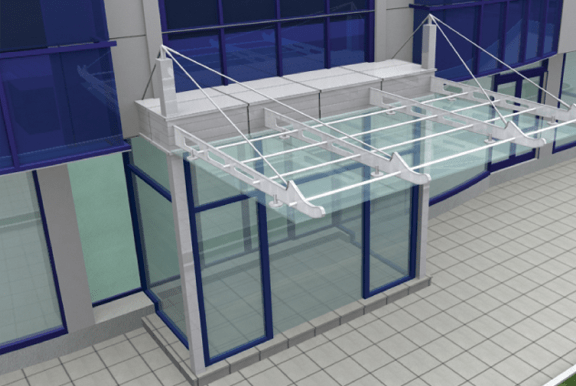

Bank Entrance Canopy
Made with a 14mm wrought iron stainless steel sheet console, pipe connections, chrome steel tensioner, and 12mm tempered glass.
Canopy Connections
Spider and pipe connections (The system has been pre-assembled in the workshop).
